Brand: Aiyima
Model: A80 DAC Amplifier
Key Features
The Aiyima A80 is an all-in-one DAC amplifier designed to deliver high-fidelity audio. It combines a high-performance ES9038Q2M decoder chip with a powerful TPA3255 Class D amplifier chipset to provide rich, detailed sound with support for DSD512 and PCM ultra-high-resolution audio.
Audio Performance
- High-Fidelity Sound: The A80 utilizes audiophile-grade components, including Rubycon and German WIMA capacitors, to achieve a total harmonic distortion THD as low as 0.006% and a signal-to-noise and distortion ratio SINAD of 109dB. This ensures a clear and accurate audio reproduction.
- Powerful Output: Capable of delivering a maximum output power of 300W per channel into 4Ω speakers, the A80 can drive a wide range of passive speakers.
- Replaceable OP Amps: For audio enthusiasts, the A80 features replaceable OP amp chips, allowing for customization and fine-tuning of the sound signature. Compatible chips include RT3609SM, OPA2604, OPA2134, LM4562, JRC5532, OP275GSZ, and OPA1612.
Connectivity

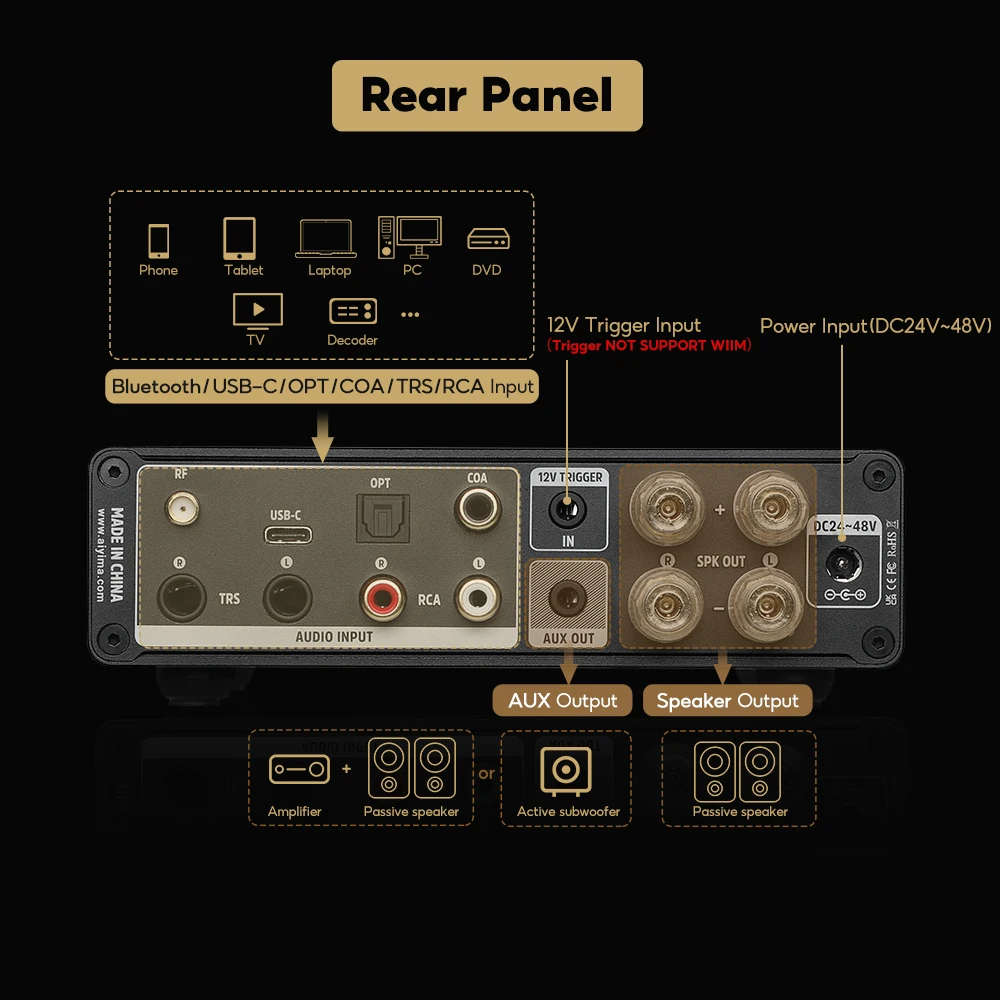

The A80 offers a comprehensive array of input options to connect to virtually any audio source:
- Wireless: Bluetooth 5.1 with support for AAC, SBC, aptX, aptX-LL, and aptX-HD codecs.
- Digital: PC-USB, Optical, and Coaxial inputs.
- PC-USB supports PCM up to 384kHz/32bit and DSD256.
- Optical/Coaxial support up to 24bit/192kHz.
- Analog: RCA and TRS inputs.
For outputs, it includes 3.5mm AUX and RCA, allowing flexible setup of 2.0 or 2.1 channel home audio receiver systems.
Versatility & Convenience
- 12V Trigger Input: This feature enables seamless integration with various control systems and home automation equipment, simplifying operation and enhancing system flexibility. Note: Not compatible with Wiim devices.
- Standby Function: The A80 enters standby mode after 5 minutes of no signal input, conserving energy and extending the amplifier’s lifespan.

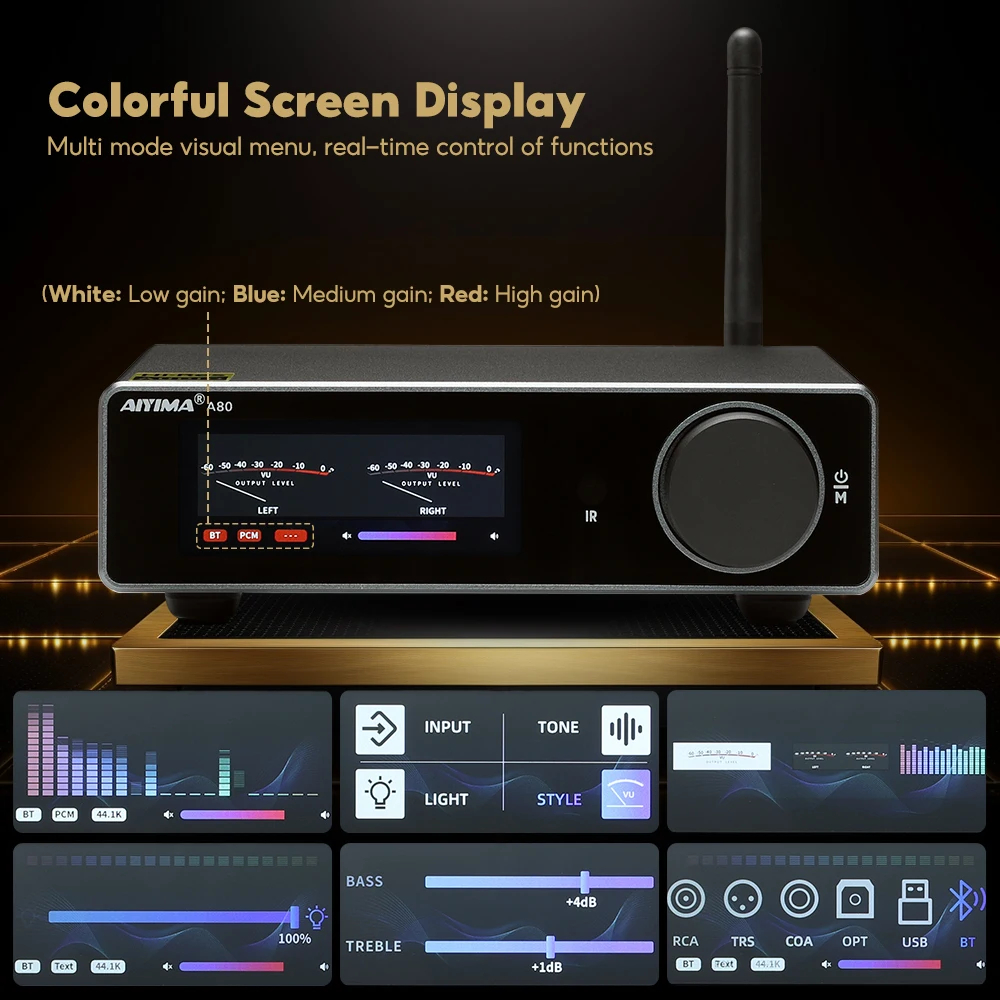

- Stylish Design: Features an electronic UV display screen with three customizable display modes, providing real-time information on input status and volume, and offering a dynamic visual effect, especially when playing games or during parties.
- Wide System Compatibility: Supports Windows 10/11, macOS, Mac, and Linux.
Technical Specifications
- Chipset: TPA3255D2, QCC3040, NJW1194, SA9137L, ESS9038Q2M, OPA1656, NE5532
- Distortion: 0.006%
- SNR TRS/RCA: ≥109dB
- High and Low Tone Adjustment: ±10db
- Frequency Response: 20Hz-20kHz (±0.5dB)
- RCA Input Sensitivity: 2Vrms
- TRS Input Sensitivity: 3.6Vrms
- Speaker Impedance: 4-8Ω
- AUX OUT Output Sensitivity: 2V
- Trigger Voltage: 12V
- Power Supply: 24-48V
- Dimensions: 155 x 123 x 41mm
- Weight: 850g Amplifier only

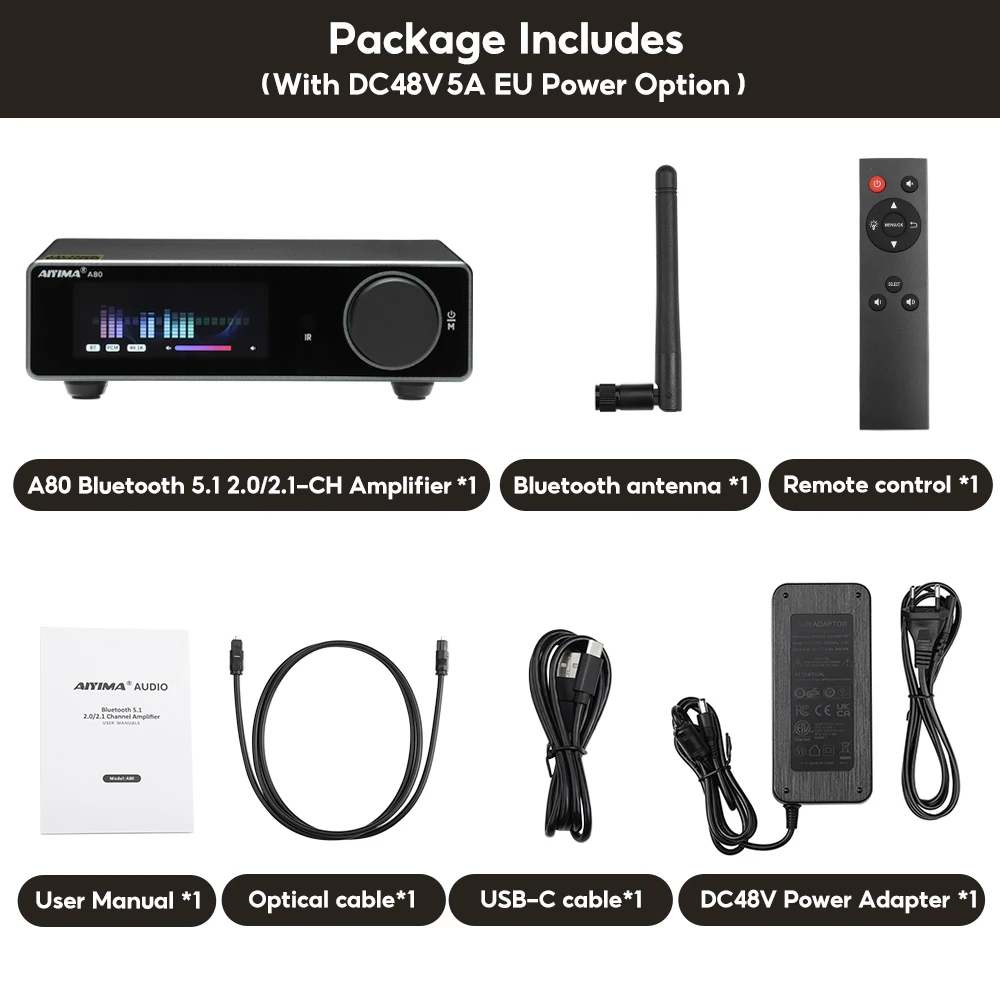

Included in the Package
- A80 Amplifier
- PC-USB Audio Cable
- Optical Cable
- User Manual
- Remote Control
Important Notes
- For Windows users, drivers may be required for certain functions, such as playing DSD files. The driver can be downloaded at: https://bit.ly/4lYCd1N
- When downloading the U disk driver, temporarily disable your computer’s antivirus software.
- Starting May 15, 2025, the product will no longer include a U disk.
